Bruno Putzey's Minimalist Balanced Preamplifier Board (PCB only, no parts)

This is a PCB for the minimalist balanced preamplifier designed by Bruno Putzey as a demo project for his article "The G Word, or How to Get Your Audio off the Ground".

The article was originally published in Linear Audio Vol.5; a PCB was included with the volume. Later, the article appeared on multiple web sites, including edn.com. The article discusses the design at length and contains the schematic and the part list.

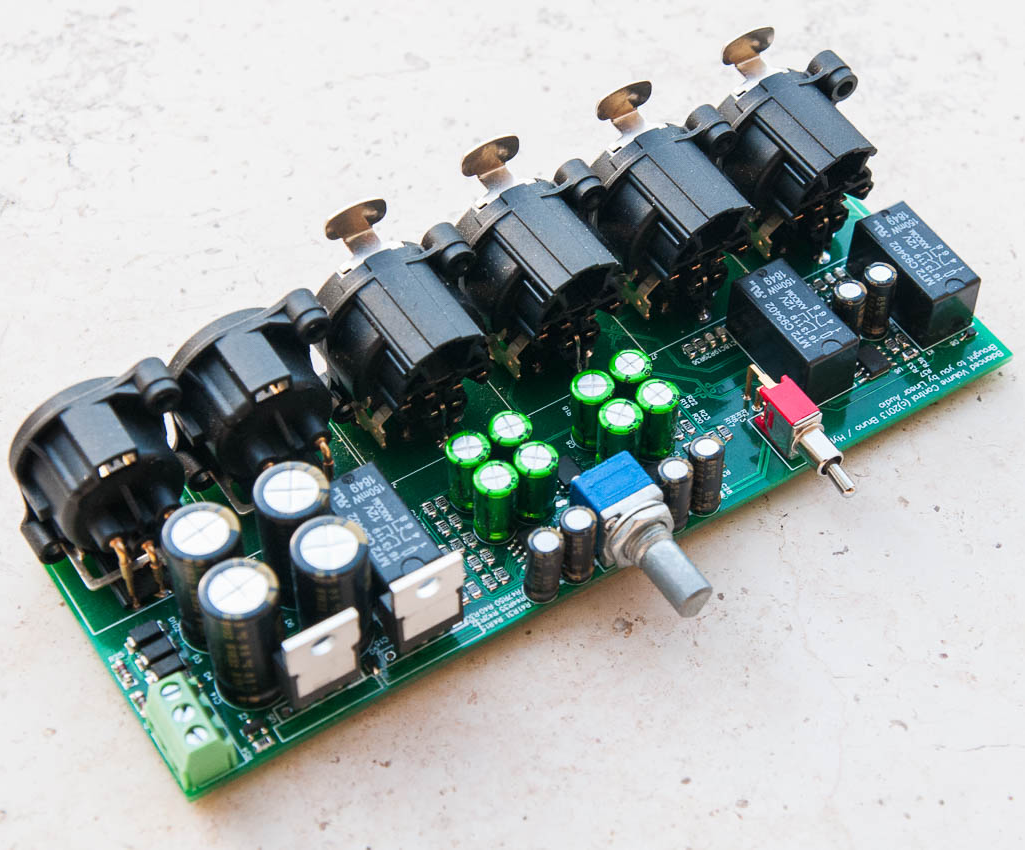

The board carries a purist balanced stereo preamplifier with two pairs of XLR inputs and one pair or XLR outputs. The power supply, except the transformer and its mains wiring, is included on the board.

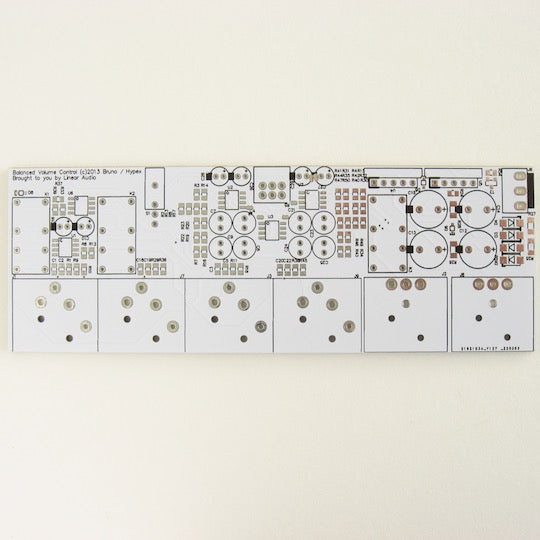

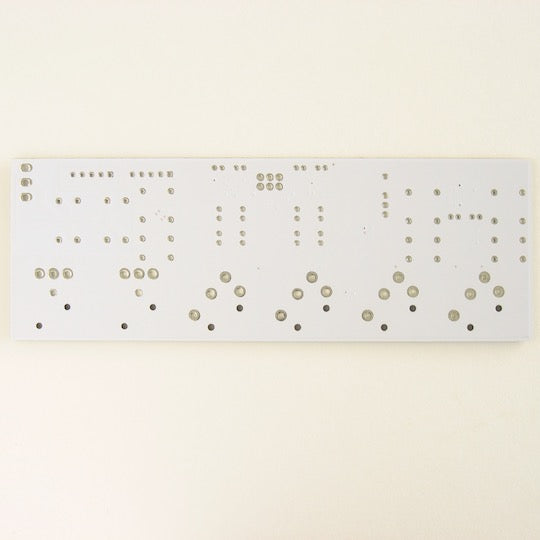

• Bare board only.
• Parts are not included and need to be obtained separately.
• Assembly is required. The boards requires soldering SMT components with packages as small as 0805 (2.0x1.2mm) and SOD323 (1.7x1.25mm).

• Original article at edn.com: part 1, part 2, part 3, part 4 (part 4 is the discussion of this board)

• Schematic
• Component placement
• Part list (BOM)
• Shared project at Mouser
• Discussion at diyAudio.com
